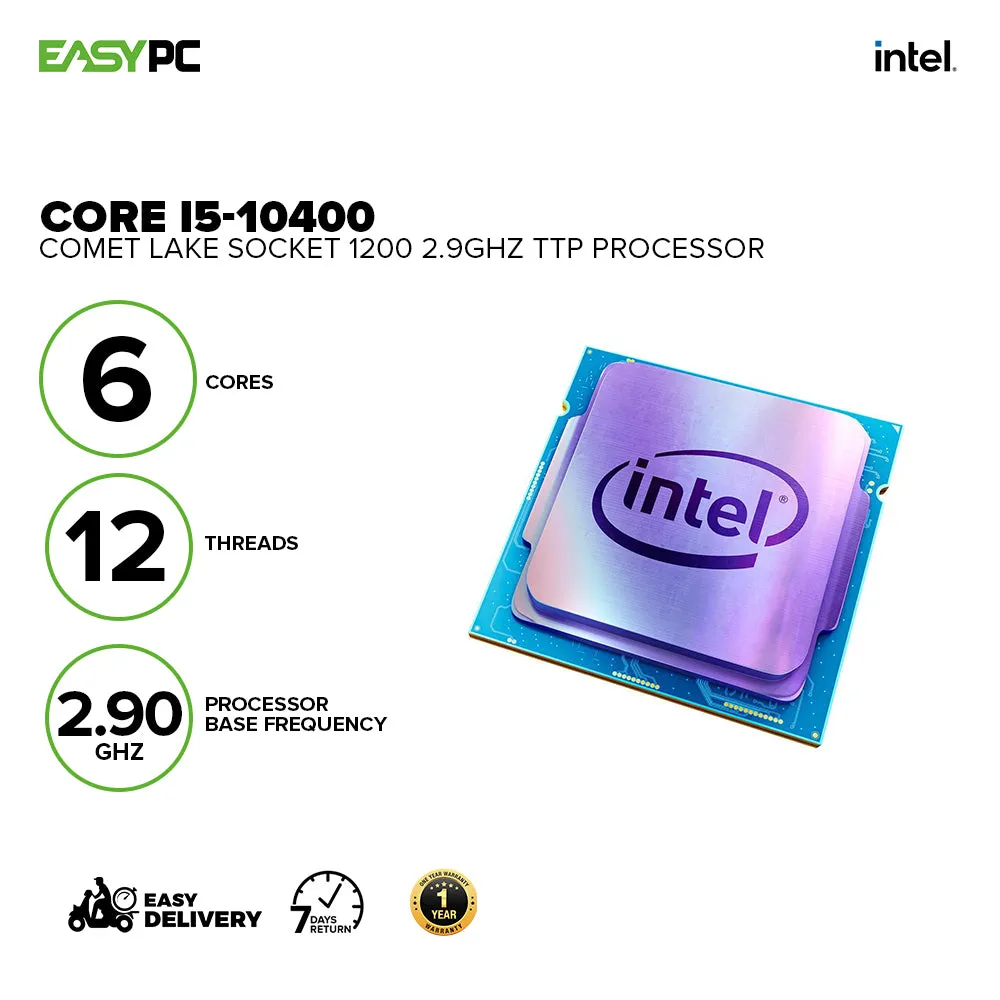

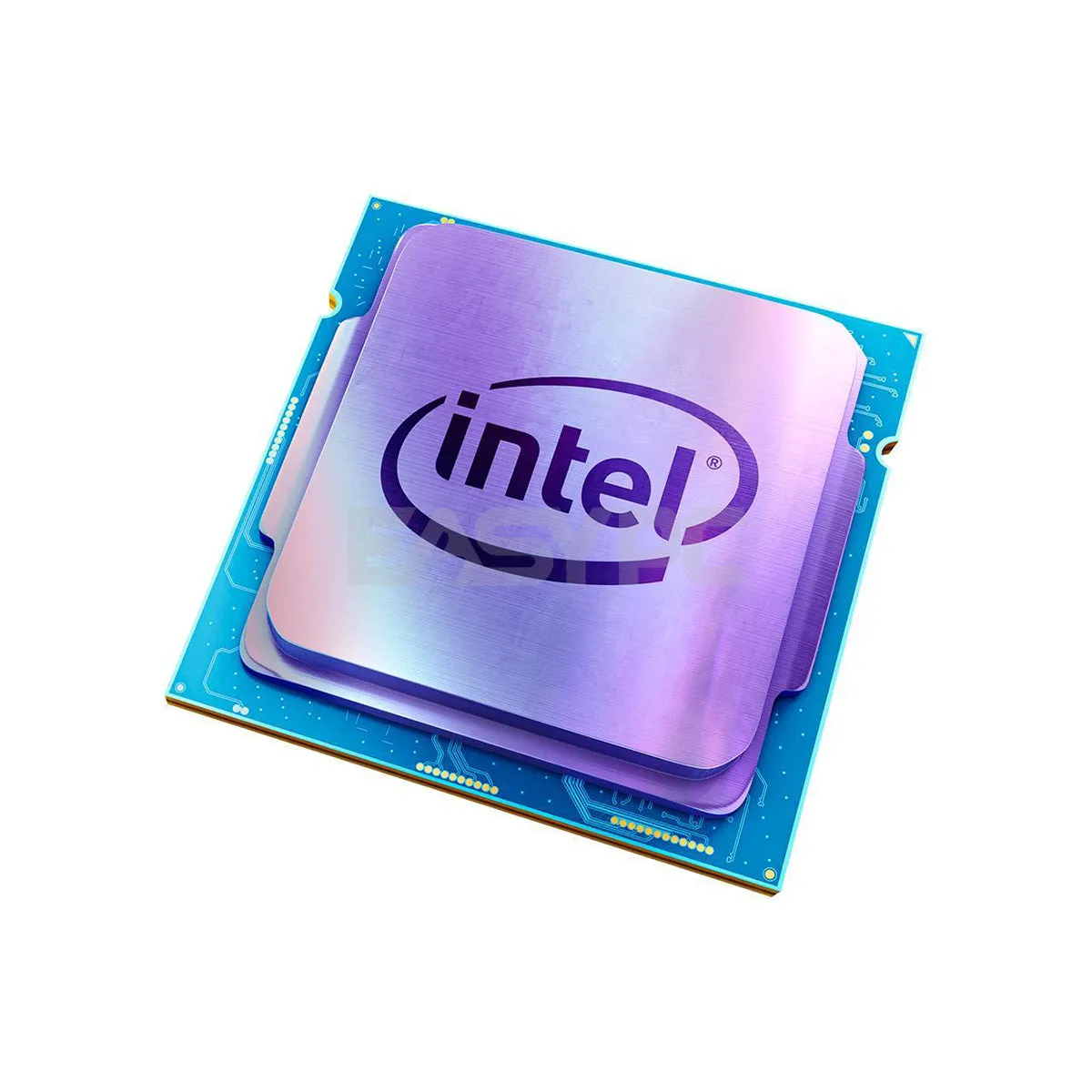

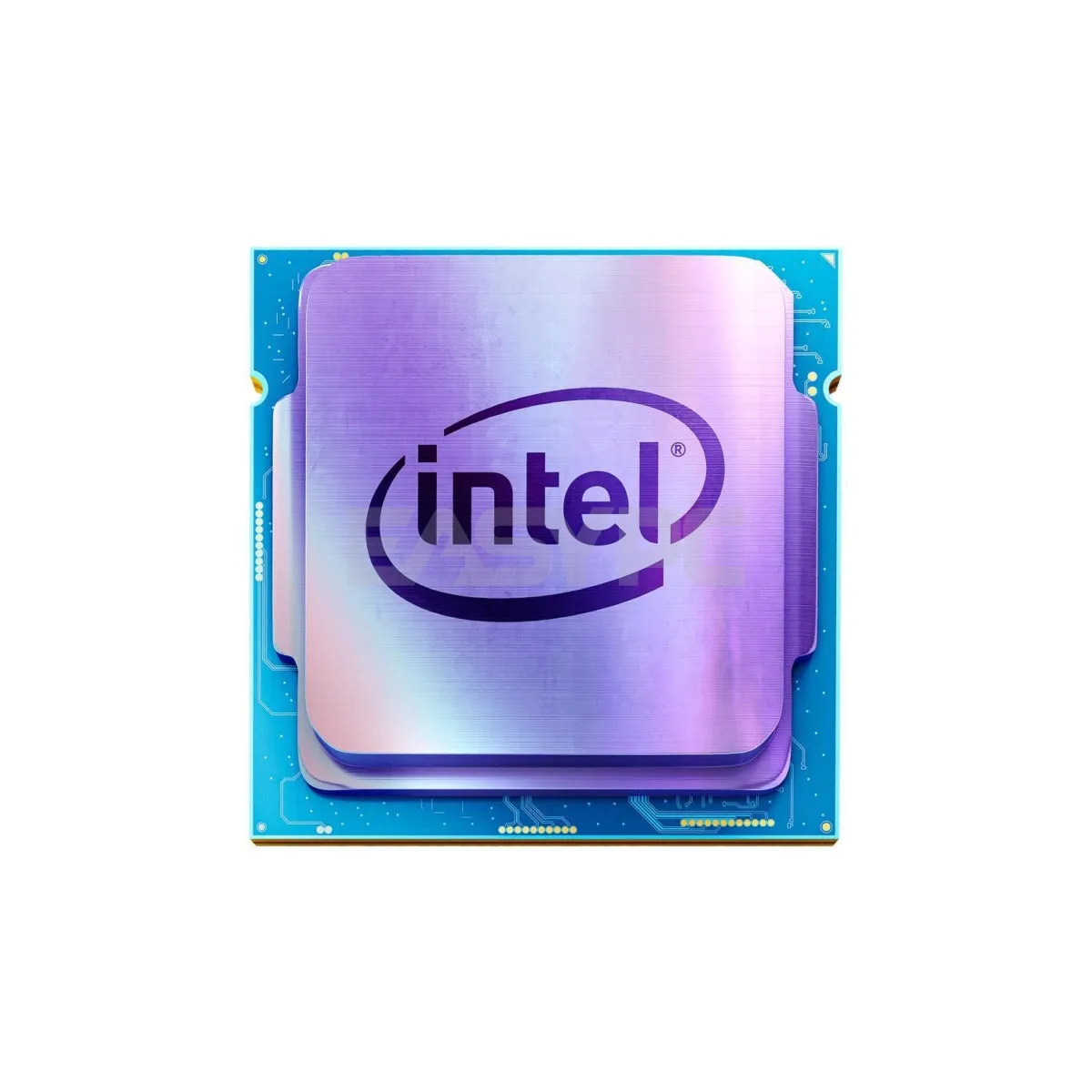

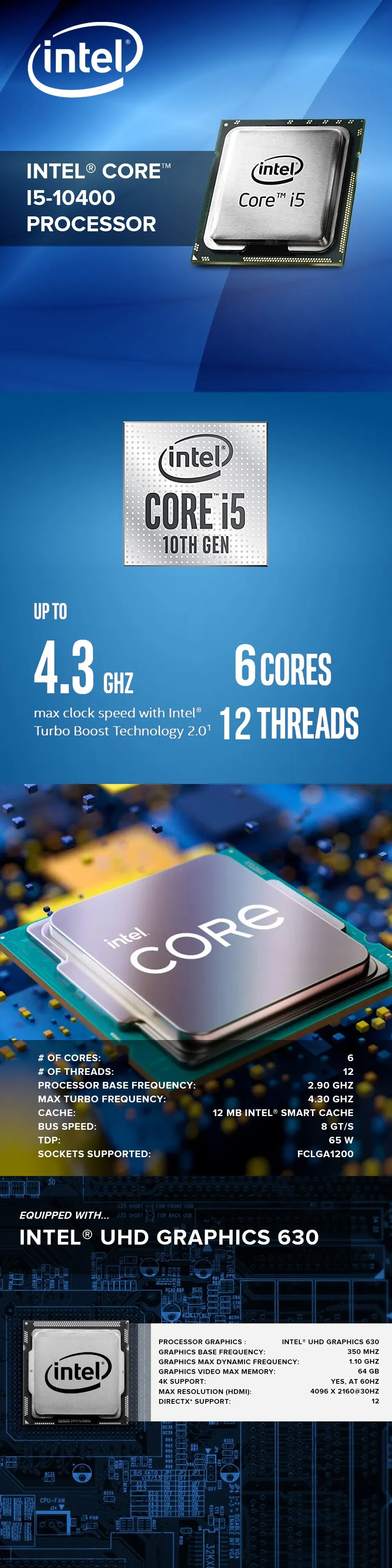

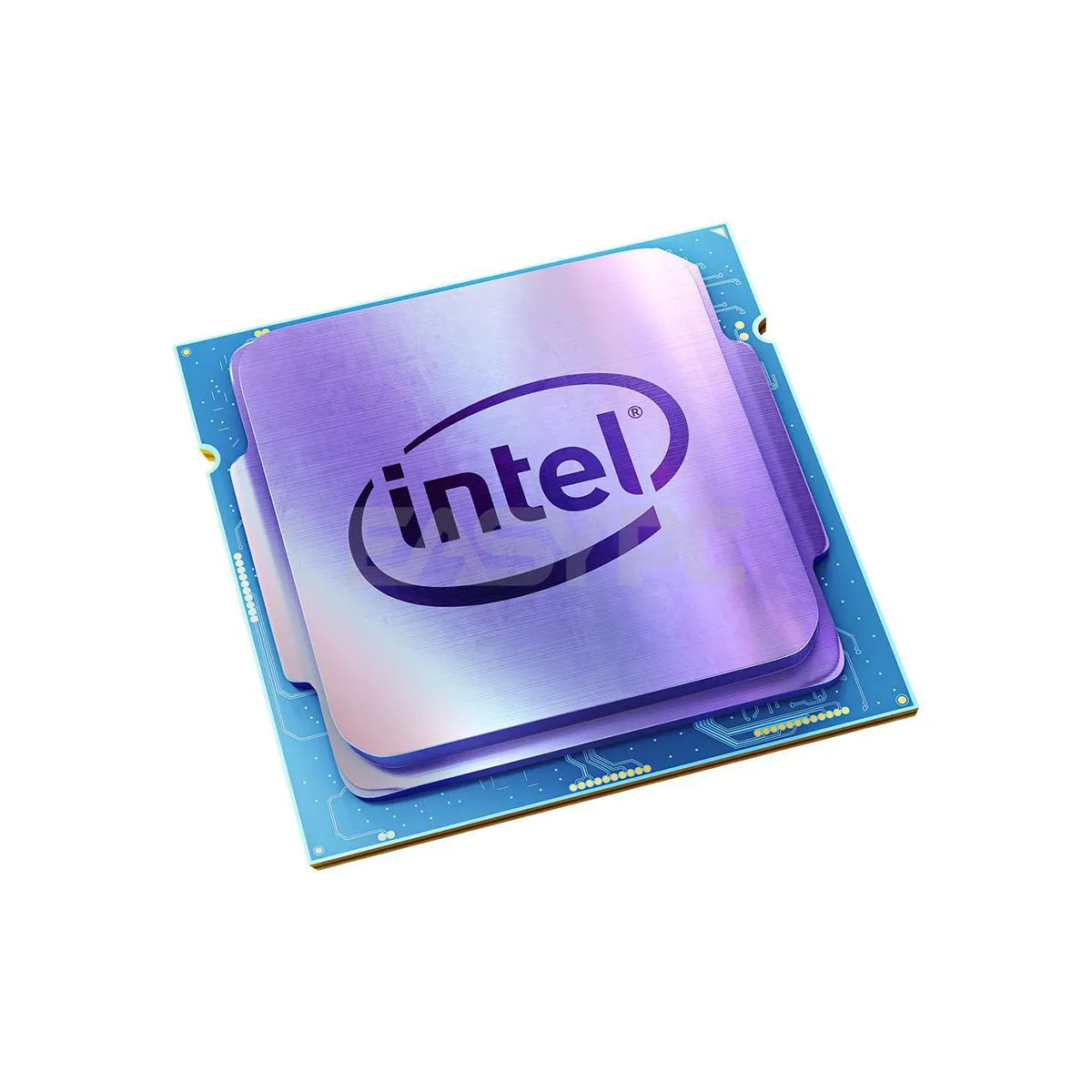

Intel Core I5-10400 Comet Lake Socket 1200 2.9GHz,4k Support at 60Hz Processor TTP

Product Specifications

• Brand: Intel
• Model: Core I5-10400 TTP
• CPU Specifications
• # of Cores: 6
• # of Threads: 12
• Processor Base Frequency: 90 GHz
• Max Turbo Frequency: 4.30 GHz
• Cache: 12 MB Intel® Smart Cache
• Bus Speed: 8 GT/s
• Intel® Turbo Boost Technology 2.0 Frequency‡ : 30 GHz
• TDP: 65 W
• Memory Specifications
• Max Memory Size (dependent on memory type): 128 GB
• Memory Types: DDR4-2666
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 6 GB/s
• ECC Memory Supported ‡: No
• Processor Graphics
• Processor Graphics ‡: Intel® UHD Graphics 630
• Graphics Base Frequency: 350 MHz
• Graphics Max Dynamic Frequency: 10 GHz
• Graphics Video Max Memory: 64 GB
• 4K Support: Yes, at 60Hz
• Max Resolution (HDMI)‡: 4096 x 2160@30Hz
• Max Resolution (DP)‡: 4096 x 2304@60Hz
• Max Resolution (eDP - Integrated Flat Panel) ‡: 4096 x 2304@60Hz
• DirectX* Support: 12
• OpenGL* Support: 4.5
• Intel® Quick Sync Video: Yes
• Intel® InTru™ 3D Technology: Yes
• Intel® Clear Video HD Technology - Yes
• Intel® Clear Video Technology - Yes
• # of Displays Supported ‡ - 3
• Device ID - 0x9BC8 / 0x9BC5
• Expansion Options
• Scalability - 1S Only
• PCI Express Revision - 3.0
• PCI Express Configurations ‡ - Up to 1x16, 2x8, 1x8 2x4
• Max # of PCI Express Lanes - 16
• Package Specifications
• Sockets Supported - FCLGA1200
• Max CPU Configuration - 1
• Thermal Solution Specification - PCG 2015C
• TJUNCTION - 100°C
• Package Size - 37.5mm x 37.5mm
