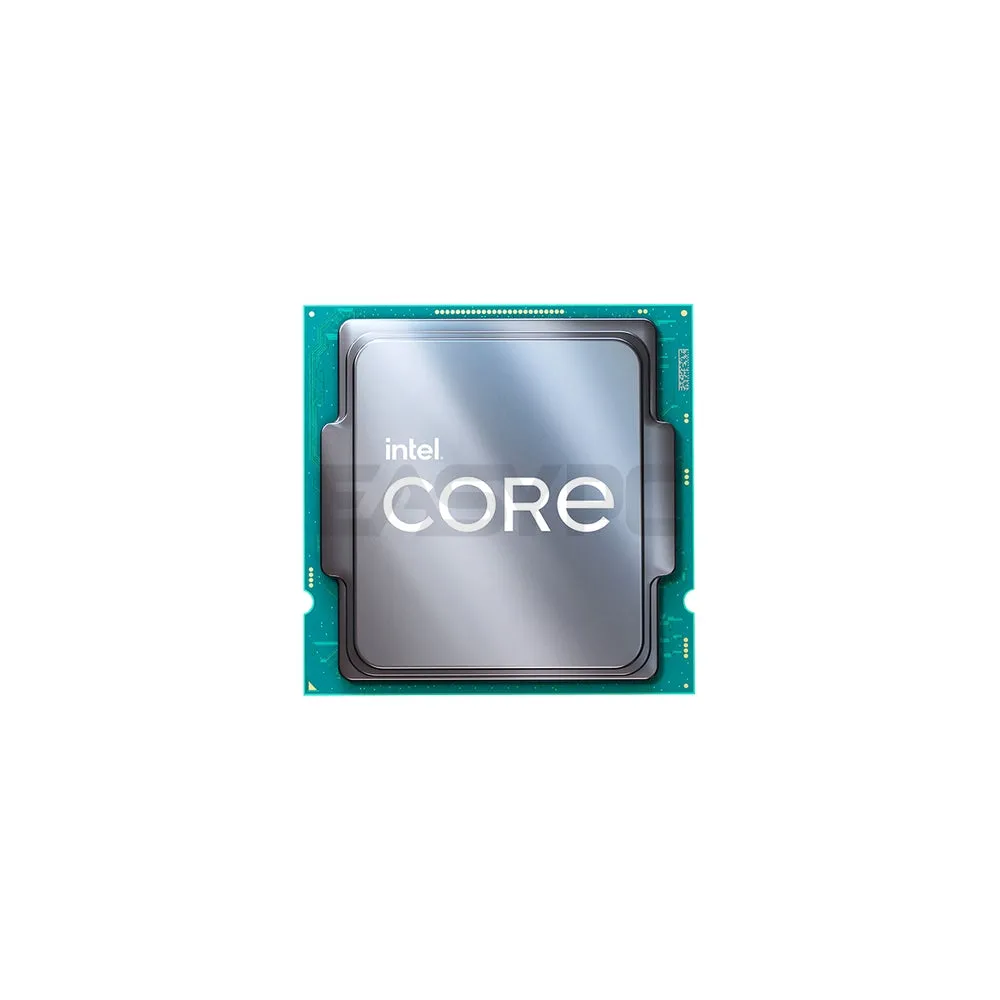

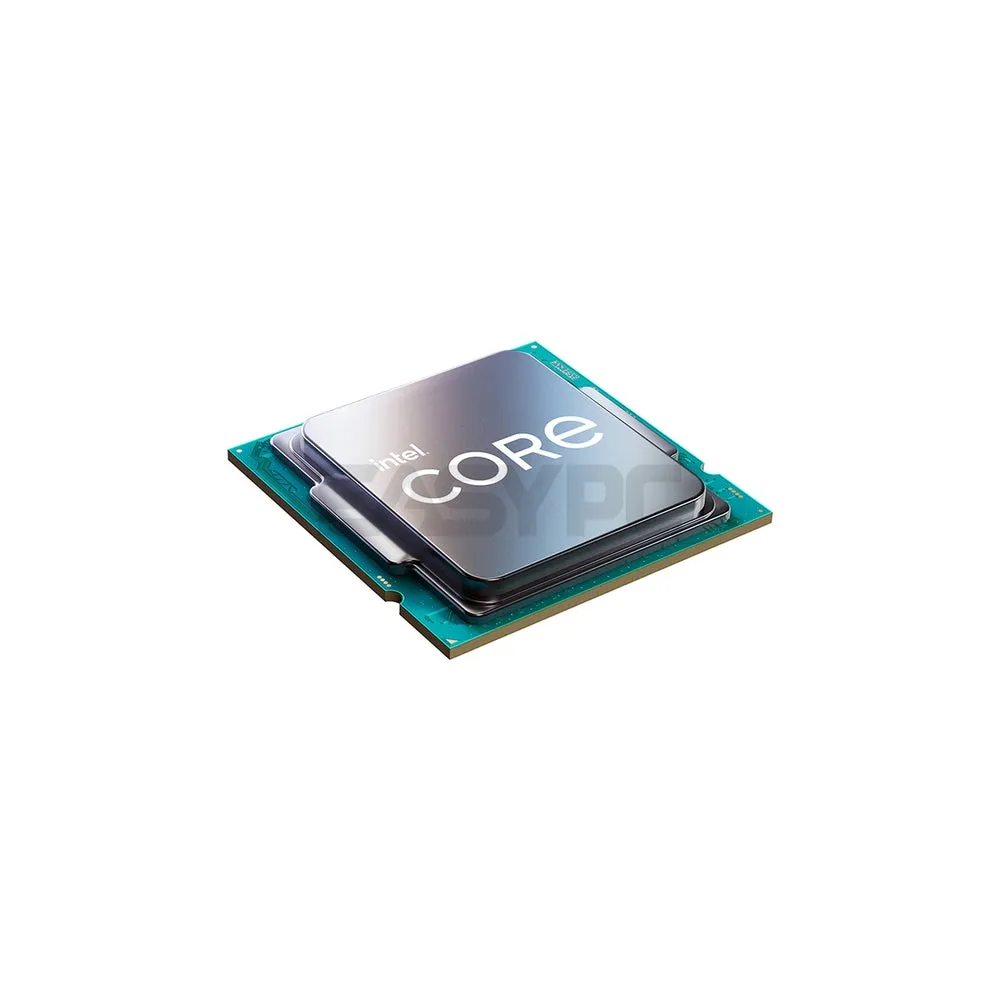

Intel Core i5-11600 Rocket Lake Socket 1200, 6 Cores, 12 Threads, 2.8GHz Processor

Product Specification

• Total Cores: 6
• Total Threads: 12
• Max Turbo Frequency: 4.80 GHz
• Intel® Turbo Boost Technology 2.0 Frequency‡: 4.80 GHz
• Processor Base Frequency: 2.80 GHz
• Cache: 12 MB Intel® Smart Cache
• Bus Speed: 8 GT/s
• TDP: 65 W
• Memory Specifications
• Max Memory Size (dependent on memory type): 128 GB
• Memory Types: DDR4-3200
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 50 GB/s
• ECC Memory Supported ‡: No
• Processor Graphics
• Processor Graphics ‡: Intel® UHD Graphics 750
• Graphics Base Frequency: 350 MHz
• Graphics Max Dynamic Frequency: 1.30 GHz
• Graphics Video Max Memory: 64 GB
• Execution Units: 32
• 4K Support: Yes, at 60Hz
• Max Resolution (HDMI)‡: 4096x2160@60Hz
• Max Resolution (DP)‡: 5120 x 3200 @60Hz
• Max Resolution (eDP: Integrated Flat Panel)‡: 5120 x 3200 @60Hz
• DirectX* Support: 12.1
• OpenGL* Support: 4.5
• Intel® Quick Sync Video: Yes
• Intel® InTru™ 3D Technology: Yes
• Intel® Clear Video HD Technology: Yes
• Intel® Clear Video Technology: Yes
• # of Displays Supported ‡: 3
• Device ID: 0x4C8A
• OpenCL* Support: 3.0
• Expansion Options
• Scalability: 1S Only
• PCI Express Revision: 4.0
• PCI Express Configurations ‡: Up to 1x16 1x4, 2x8 1x4, 1x8 3x4
• Max # of PCI Express Lanes – 20
