Best-in-class intelligent rack power distribution (PDU) with up to 50% more power, twice as many outlets, and a 4-in-1 combination outlet design for fast, flexible deployment.

• Primary Information

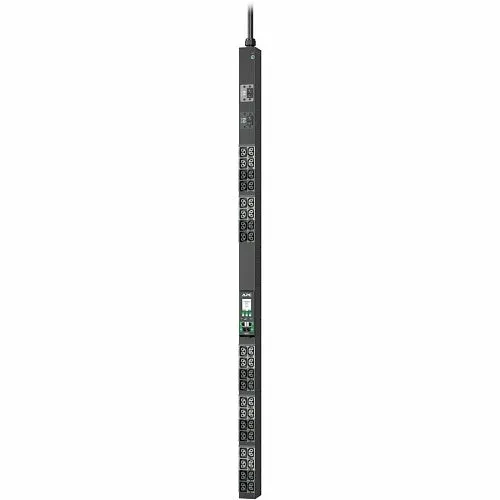

  Product Description:	APC NetShelter Rack PDU Advanced - power distribution unit - switched metered outlet - 5 kW - 5000 VA
  Device Type:	Power distribution unit - rack-mountable
  Cord Length:	10 ft
  Rack Size:	0U
  Weight:	17.2 lbs
  Input Wiring:	1-phase
  Input Voltage:	AC 200-240 V
  Output Voltage:	AC 208 V
  Power Capacity:	5 kW / 5000 VA

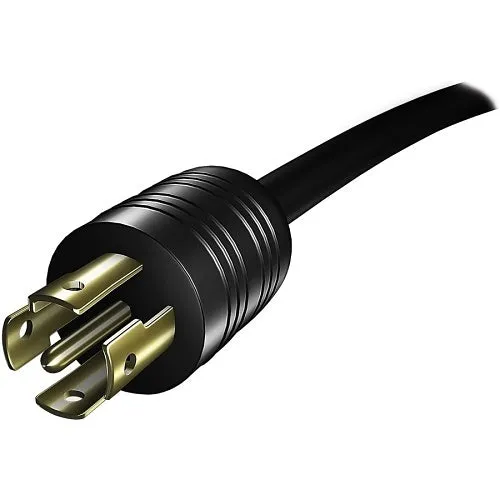

  Input Connectors:	1 x power NEMA L6-30P

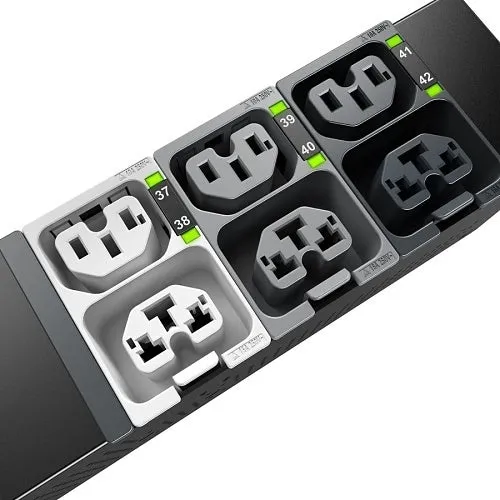

  Output connectors:	20 x power IEC 60320 C13/C15 ¦ 20 x power IEC 60320 C13/C15/C19/C21
  Networking:	Ethernet 10/100/1000
  Remote Management Protocol:	SNMP
  Color:	Black
  Dimensions (WxDxH):	2.2 in x 3 in x 58.7 in
  Manufacturer Warranty:	3-year warranty

• General

  Device Type:	Power distribution unit - rack-mountable
  Height (Rack Units):	0U
  Cord Length:	10 ft
  Color:	Black

• Power Device

  Input Voltage:	AC 200-240 V
  Input Wiring:	1-phase
  Frequency Required:	50/60 Hz
  Input Connectors:	1 x power NEMA L6-30P
  Power Output Connectors Details:	20 x power IEC 60320 C13/C15 ¦ 20 x power IEC 60320 C13/C15/C19/C21
  Output Voltage:	AC 208 V
  Max Electric Current:	30 A
  Power Capacity:	5 kW / 5000 VA

• Networking

  Remote Management Interface:	Ethernet 10/100/1000
  Remote Management Protocol:	SNMP

• Expansion / Connectivity

  Interfaces:

  Management (Gigabit Ethernet) - RJ-45 ¦ Cascading - RJ-45

• Miscellaneous

  Cables Included:	Power cable 10 ft

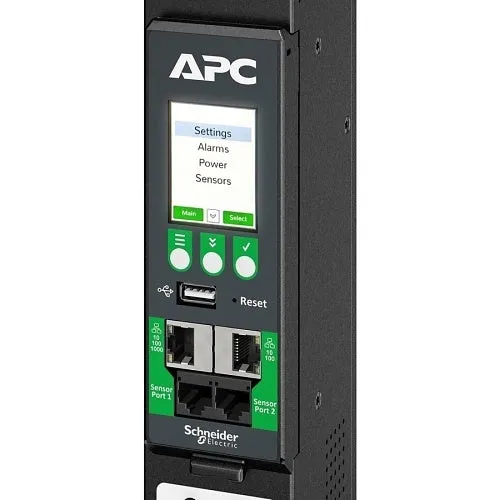

  Features:	Vertical orientation, LCD display, overload protection
  Compliant Standards:	EN 62368-1, UL 62368-1, UKCA, FCC Part 15 Subpart B, CSA C22.2 No. 62368-1

• Manufacturer Warranty

  Service & Support:

  Limited warranty - replace or repair - 3 years

• Environmental Parameters

  Min Operating Temperature:	23 °F
  Max Operating Temperature:	140 °F
  Humidity Range Operating:	5 - 95%

• Dimensions & Weight

  Width:	2.2 in
  Depth:	3 in
  Height:	58.7 in
  Weight:	17.2 lbs

• Dimensions & Weight (Shipping)

  Shipping Width:	8.2 in
  Shipping Depth:	4.6 in
  Shipping Height:	67.7 in
  Shipping Weight:	21.61 lbs

• Special Feature

  COO:	UNITED STATES
  TAA compliance:	Yes

• UNSPSC Code:

  39121017
