CPU

AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 192GB, DDR5, 8000 MT/s (OC) with Ryzen™ 9000, 8000, 7000 Series, ECC & Non-ECC Un-buffered DIMM, Dual Channel, Supports EXPO™ and ASUS AEMP

Graphics

1 x HDMI™ port (4K@60Hz), 2 x USB4® Type-C® (8K@60Hz), VGA resolution depends on processor

Expansion Slots

2 x PCIe 5.0 x16 slots (x16 or x8/x8 modes), 1 x PCIe 4.0 x16 slot (x4 mode)

Storage

4 x M.2 slots (PCIe 5.0/4.0), 4 x SATA 6Gb/s ports

Ethernet

1 x Marvell® AQtion 10Gb, 1 x Intel® 2.5Gb, ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be), 2x2, Bluetooth® v5.4

USB (Rear)

2 x USB4® Type-C® (40Gbps), 1 x USB 20Gbps Type-C®, 7 x USB 10Gbps Type-A, 1 x USB 2.0

USB (Front)

1 x USB 20Gbps Type-C® (supports PD/QC4 up to 30W), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports)

Audio

Realtek ALC1220P 7.1 Surround Sound, 32-Bit/192kHz playback, Audio Shielding, Premium capacitors, Internal audio amplifier, supports Jack-detection & Multi-streaming

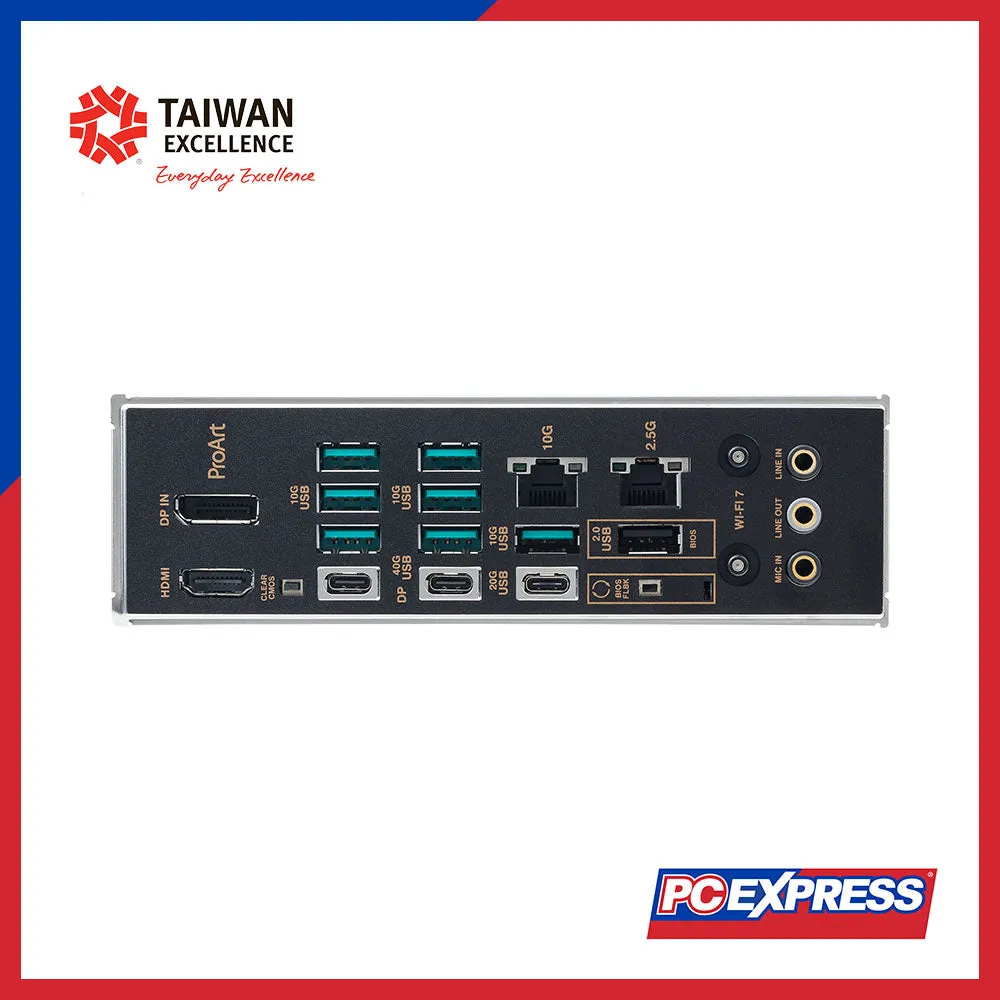

Back Panel I/O Ports

2 x USB4® Type-C® (40Gbps), 1 x USB 20Gbps Type-C®, 7 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A, 1 x DisplayPort (Input), 1 x HDMI™, 2 x Ethernet, 3 x Audio jacks, 1 x Wi-Fi Module, 2 buttons

Internal I/O

1 x 24-pin Main Power, 2 x 8-pin CPU Power, 4 x M.2 slots, 4 x SATA 6Gb/s, 6 x USB headers, 1 x Thermal sensor header, Fan headers, COM port header, Chassis Intrusion header

Special Features

ASUS 5X Protection III, Q-Design (Q-Latch, Q-Release), M.2 heatsinks, VRM heatsinks, AURA Sync, PCIe Slot Q-Release Slim, PCIe SafeSlot, SafeDIMM, BIOS FlashBack™, Addressable Gen 2 headers

Software

Armoury Crate, Aura Sync, Fan Xpert 4 with AI Cooling II, CreationFirst, Adobe Creative Cloud (Free Trial), Norton 360 Deluxe (60 Days), ProArt Creator Hub

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, FlexKey

Manageability

WOL by PME, PXE, ASUS Control Center Express (ACCE)

Accessories

4 x SATA cables, 1 x DisplayPort cable, Thermal pad for M.2 22110, Q-Antenna, M.2 Q-Latch package, Q-Slide package, Rubber Packages for M.2, ProArt ruler, Quick start guide, ACCE Activation Key

Form Factor

ATX (12" x 9.6")

Operating System

Windows® 11
