Description

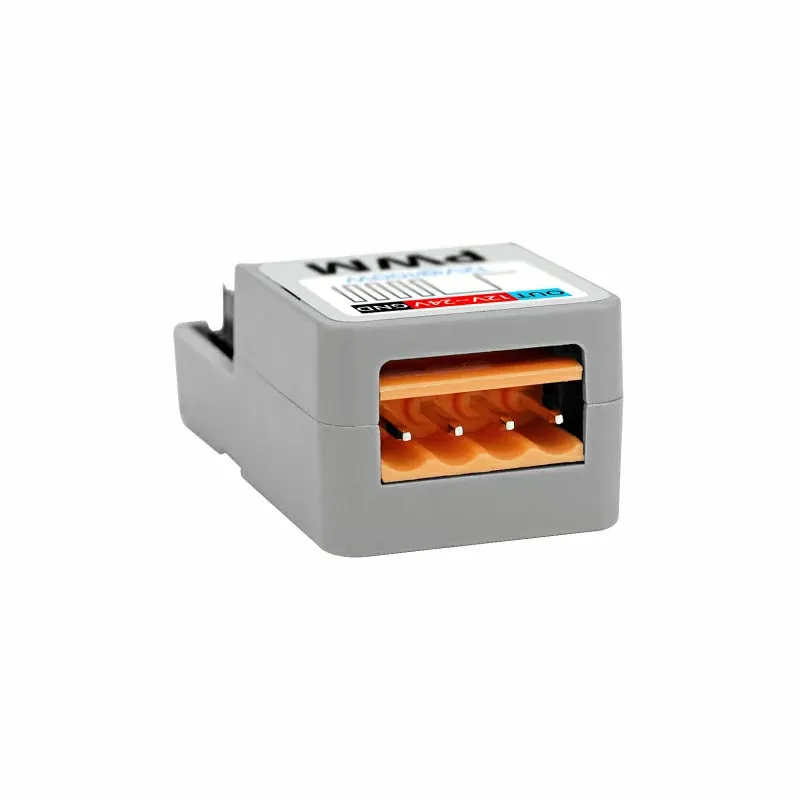

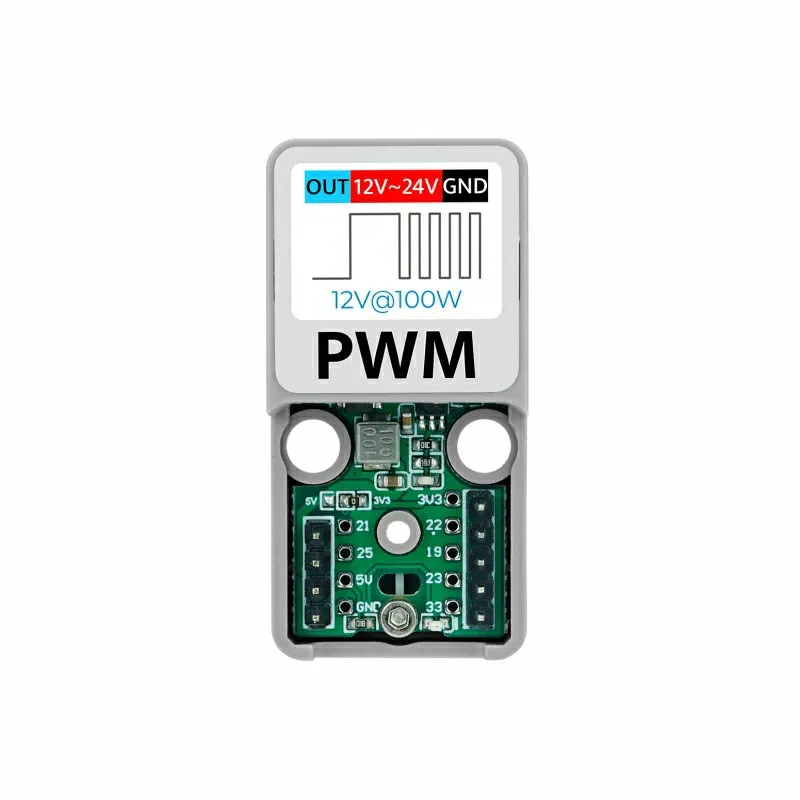

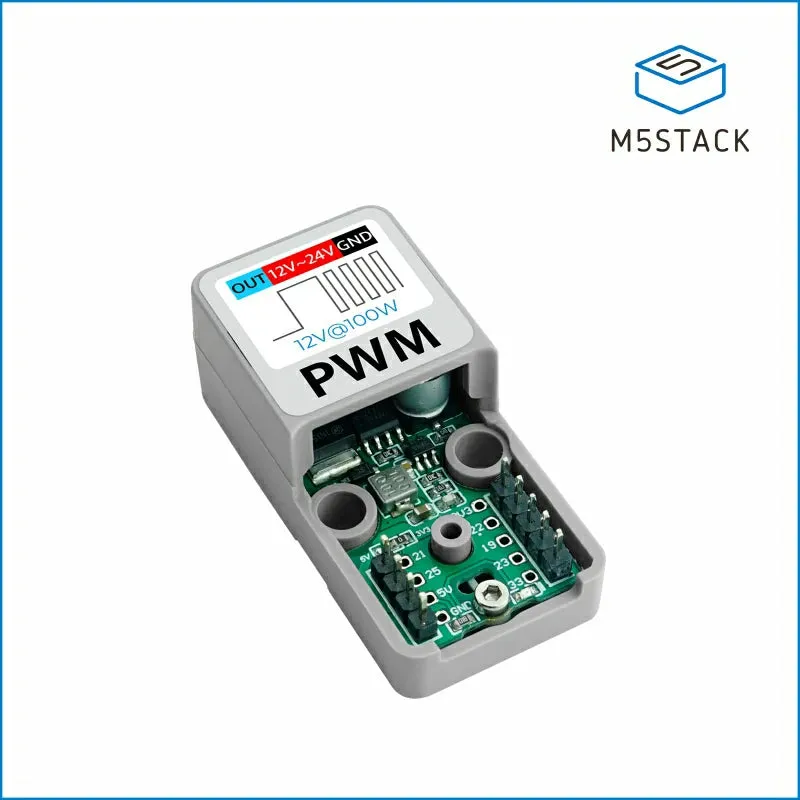

Atomic PWM Base is a single-channel PWM adjustable DC driver designed to be compatible with the Atom series main controller. It supports DC power input ranging from 12-24V. The output signal duty cycle is controlled through the built-in MOSFET switch. It has a maximum load capacity of 12V@100W and includes a built-in DCDC step-down circuit. This allows the input power supply to drive the load while also providing power to the entire device, making deployment more convenient.

By utilizing the built-in WiFi functionality of the Atom series main controller, the Atomic PWM Base enables remote control capabilities. It is well-suited for applications such as high-power DC motor PWM speed control and industrial heating wire control.

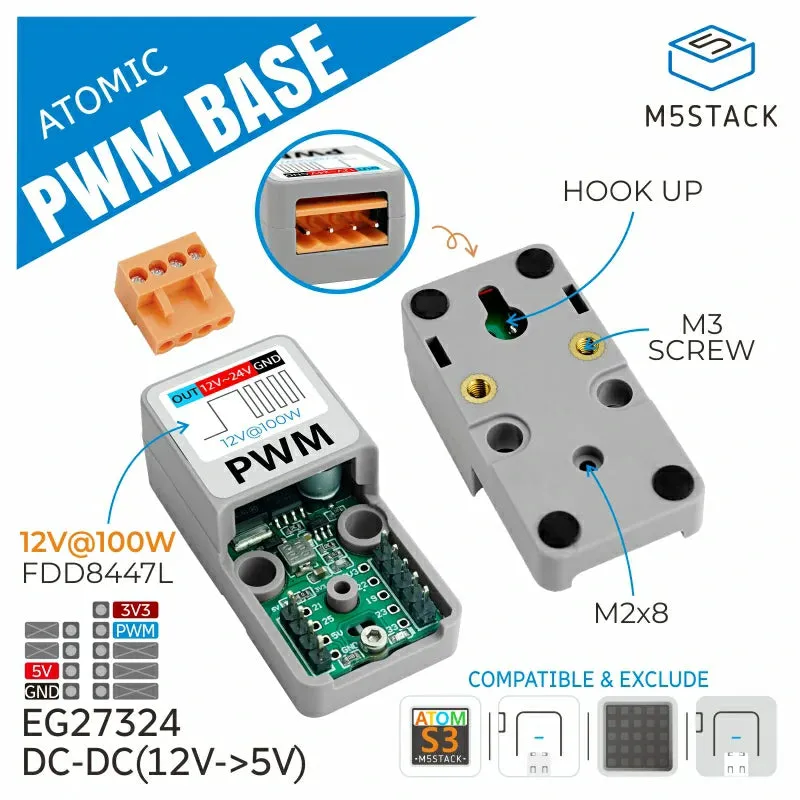

Features

• Applicable to Atom Lite/Atom Matrix/AtomS3/AtomS3 Lite
• Single channel low latency PWM signal output
• High power MOSFET, output capacity 12V@100W

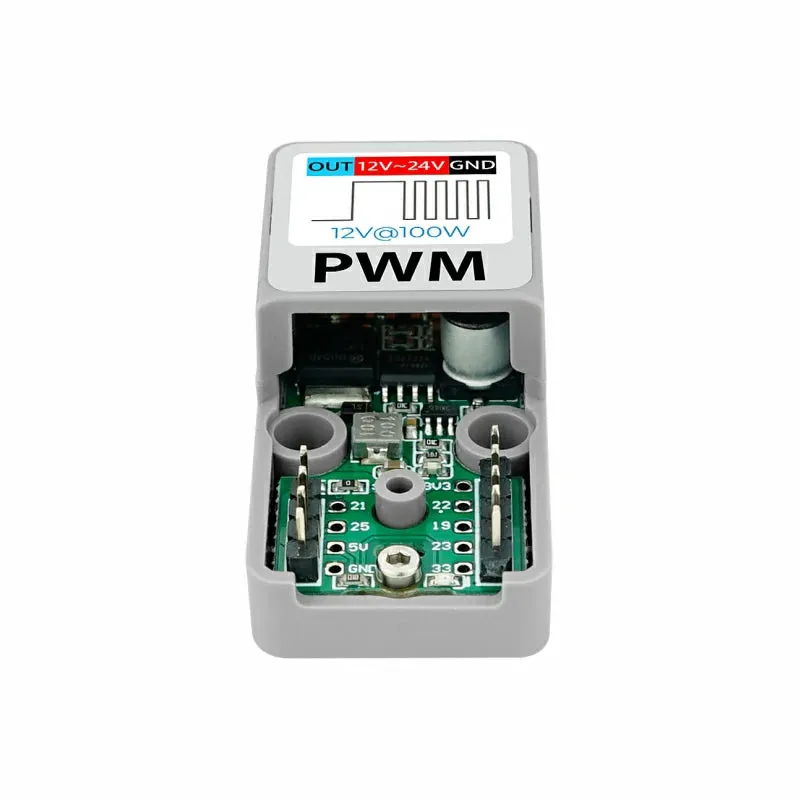

• Reserved 1xGROVE expansion interface
• Built-in DC-DC (12V->5V) conversion circuit
• Easy installation, simple operation

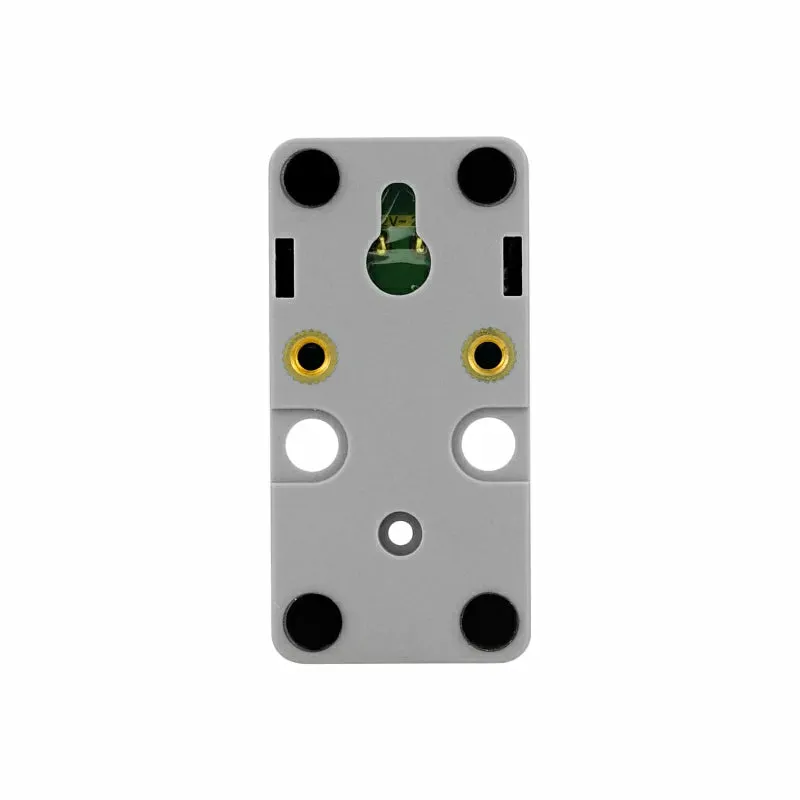

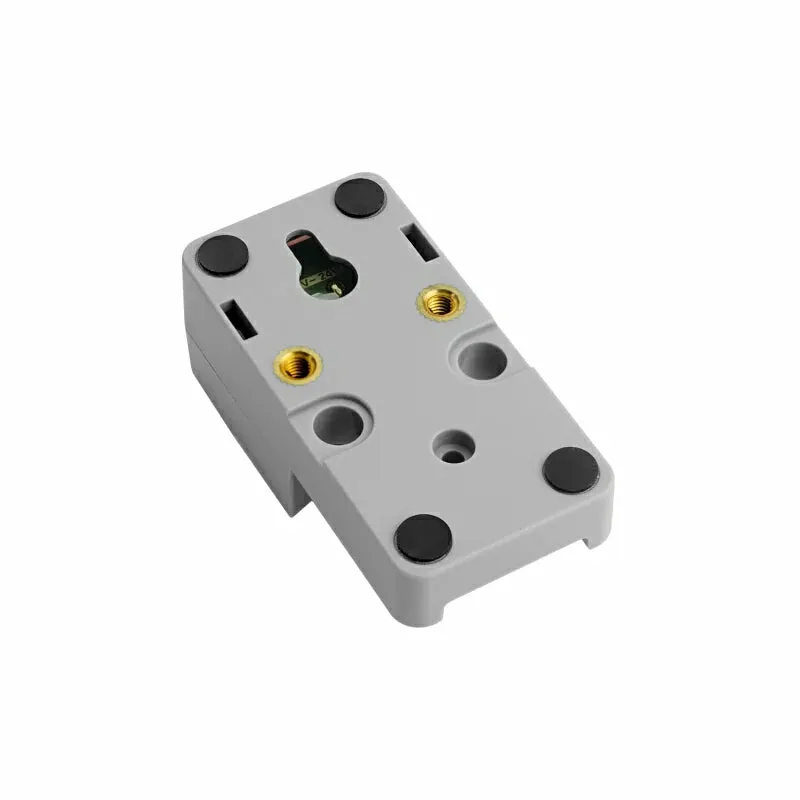

• All-in-one design with protective cover
• Development platform: Arduino/UIFlow

Includes

• 1x Atomic PWM Base

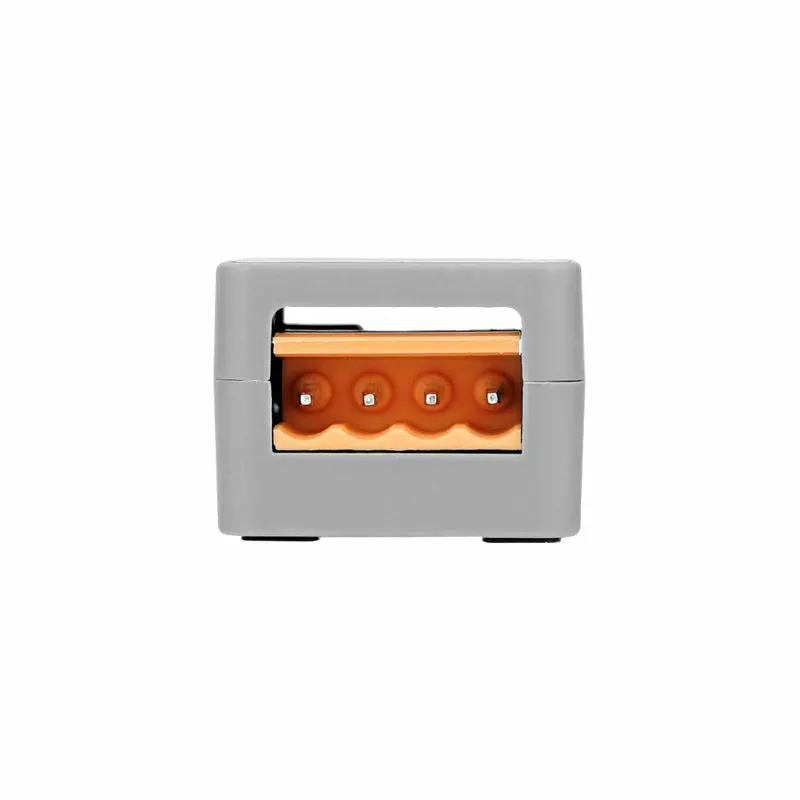

• 1x 3.96-4P terminal

Applications

• DC Motor Control
• LED brightness Adjustment
• Power Supply Control
• Temperature Control
