DESCRIPTION:
THUNDERBOLT 3 WITH MINI SAS EXPANSION - FAST THROUGHPUT, PERFECT FOR YOUR 4K, 5K, OR 6K WORKFLOW!

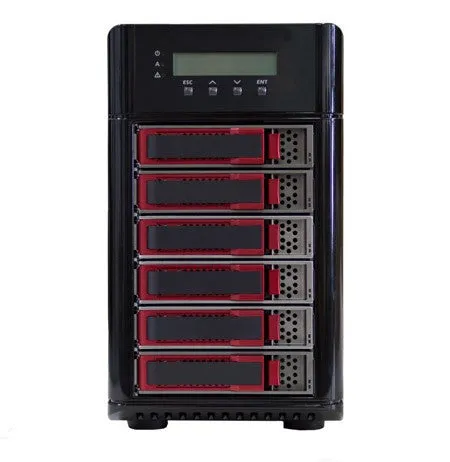

The ThunderRAID 3 Mini R6 is the worlds first 6 bay to implement Thunderbolt3 and with Mini-SAS expansion. This compact 6 bay design is small enough to carry on a plane, and will allow for you to have up to 60TB of RAID protected storage. The ThunderRAID 3 family of arrays is fully backward compatible with previous generation machines. Thunderbolt 3 hosts speeds to 40Gb/s and allows you to work with your 4K, 5K, 6K footage and beyond. Equipped with 2 Thunderbolt 3 connections you can easily daisy chain more storage or peripherals.
The ThunderRAID 3 Mini R6 has a built in hardware RAID controller compatible with both Mac and PC workstations.
FEATURES:
- RAID level - 0, 1, 10, 3, 5, 6, 10, 30, 50, 60, JBOD
- Multiple RAID selection
- Support up to 1MB stripe size
- Online array roaming
- Online RAID level/stripe size migration
- Instant availability and background initialization
- Multiple pairs SSD/HDD disk clone funtion
- SSD automatic monitor clone (AMC) support
- Global and hot spare support
- Automatic drive insertion / removal detection and rebuilding
- Advanced configuration for smooth data streaming
- Support intelligent power management to save energy and extend service life
SPECIFICATIONS:
Controller Architecture:
- ARM based 800 MHx storage processor
- 1GB on-board DDR3-800 SDRAM with ECC protection
- Write-through or write-back cache support
- Support 6 internal 6Gb/s SAS/SATA ports
- Support bootable from RAID storage volume
- Redundant flash image for controller availability
- System status indication through LCD, LED, and alarm buzzer
- Inteligent power On/Off function
- Battery Backup module ready (optional)
INCLUDED:
- (1) ThunderRAID 3 Mini R6
