DESCRIPTION:
SAME GREAT DESIGN AS THE ORIGINAL THUNDERRAID, BUT WITH THE BLISTERING SPEEDS OF THUNDERBOLT 3.

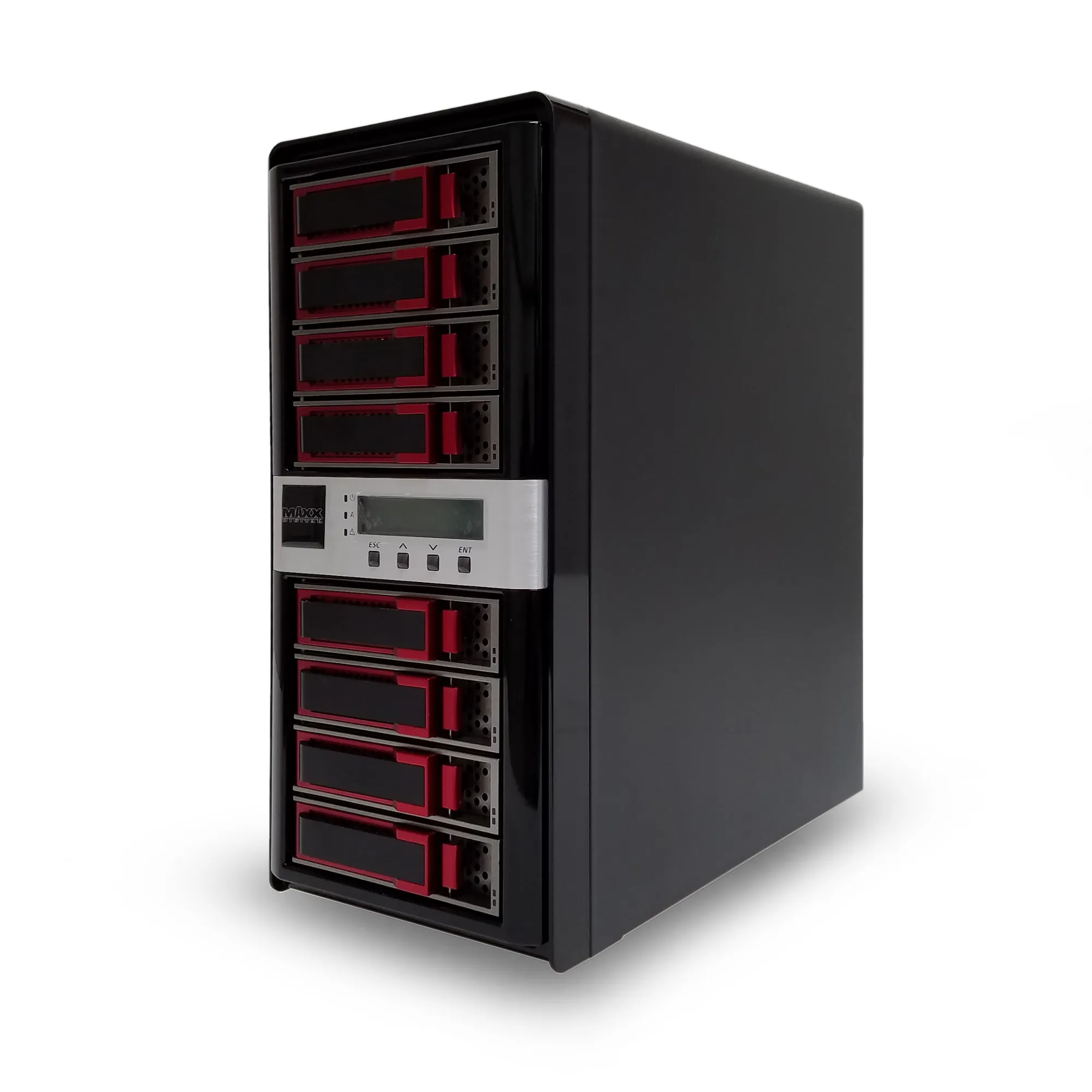

Maxx Digital introduces one of the first 8 Bay Thunderbolt 3 chassis to allow up to 80TB of raided storage on a Thunderbolt 3 connection. With Thunderbolt 3 you will see read and write speeds of 1200 MB/sec on a newer Apple iMac, or MacBook Pro with Thunderbolt 3. This chassis is very compact so it does not take up a lot of space at home or in the office.
This innovative high-speed technology was designed for speed, simplicity and flexibility. Thunderbolt 3 uses a dual protocol which lets you connect your devices with a single cable and transfer data up to 40Gbps in both directions. This gives you more than enough bandwidth to daisy chain 7 Thunderbolt™ devices.
FEATURES:
- RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
- Multiple RAID selection
- Support up to 1MB stripe size
- Online array roaming
- Online RAID level/stripe size migration
- Support global hot spare and local hot spare
- Instant availability and background initialization
- Advanced configuration for smooth data streaming
- Disk scrubbing/ array verify scheduling support
- Multiple pairs SSD/HDD disk clone function
- SSD automatic monitor clone (AMC) support
- Complete configuration management suite:
- McRAID manager: browser-based management tool (LAN or Thunderbolt)

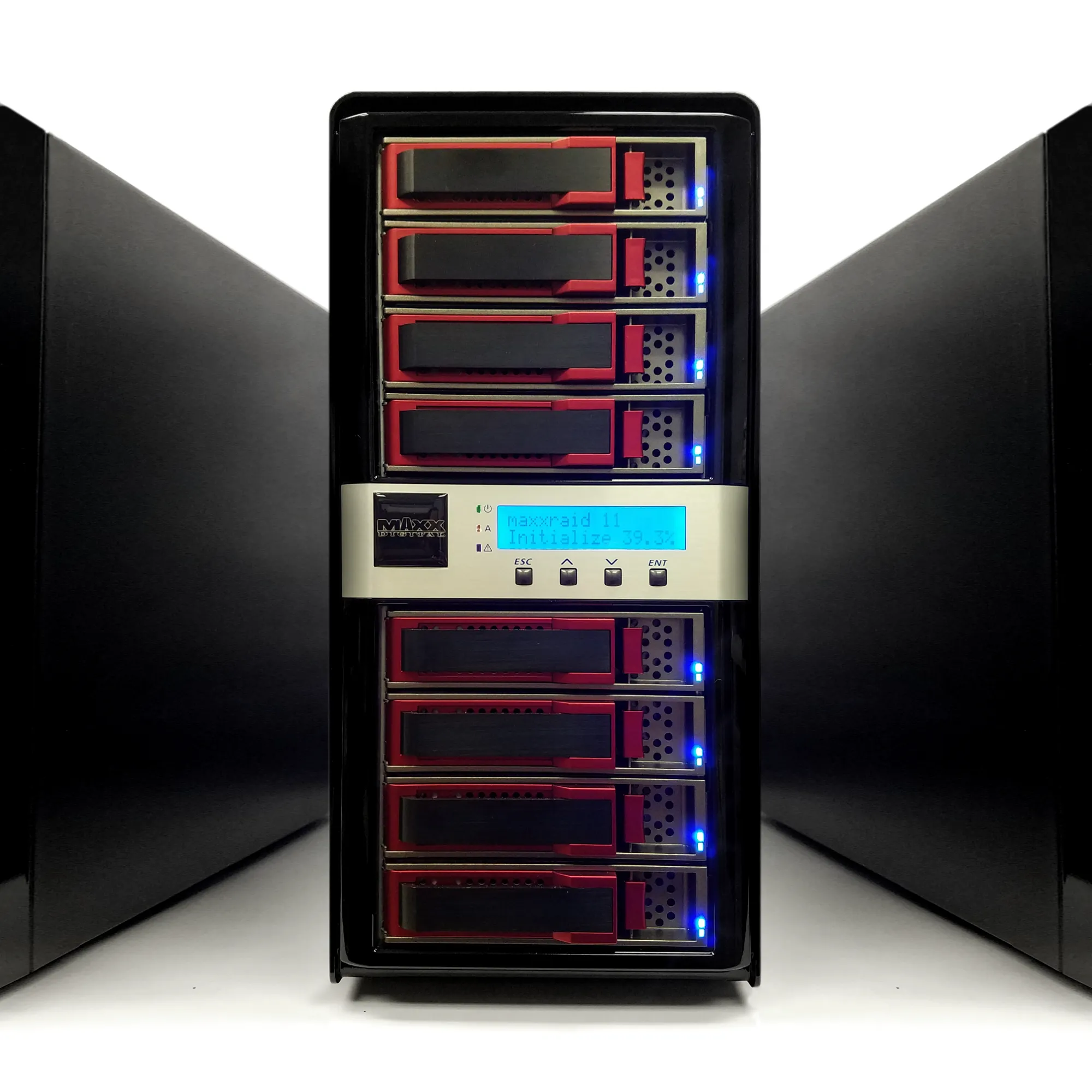

- Push Buttons and LCD Display panel for setup and status
- Command Line Interface (CLI) - scriptable configuration tool
- API libraries support - combine GUI with user management utility
- SNMP support for remote monitoring
- SMTP support for email notification
SPECIFICATIONS:
Controller Architecture:
- 800 MHz Dual core ROC for RAID core and SAS microcode
- 1GB on-board DDR3-1333 SDRAM with ECC protection
- Support up to 8 x 6Gb/s SAS/SATA 3.5"/2.5" HDDs/SSDs
- Support bootable from RAID storage volume
- Controller level hardware encryption support
- Redundant flash image for adapter availability
- System status indication through LCD, LED and alarm buzzer
- Intelligent power On/Off function
- Battery Backup Module ready (optional)
INCLUDED:
- (1) ThunderRAID 3
