Specifications:

• Product Number: 7D36-004R
• CPU Support:
  • Socket Intel LGA1700 for 12th Gen Intel Core™ Processors
  • Pentium/Gold/Celeron Processors
• Chipset: Intel Z690
• MB Size: ATX
• Memory Support:
  • 4 DIMM DDR4 Sockets for non-ECC un-buffered DDR4 RAM up to 5000 MHz (OC). Max 128GB
  • Supports Dual Channel Architecture, supports Intel Extreme Memory Profile (XMP)
• VGA: Intel UHD Graphics

• VGA Out;
  • 1x HDMI v1.4b with HDR port (supports a maximum resolution of 4K @30Hz)
  • 1x DisplayPort v1.4 (supports a maximum resolution of 4K @60H).
• Supports AMD^® CrossFire™ Technology
• Slots:
  • 2x PCI-E (x16) (supports up to PCIe 5.0 x16
  • supports up to PCIe 3.0 x4), 3x PCI-E (x1) v3.0
  • 1x M.2 slot with E key for Intel^® Wireless-AX CNVi and PCIe WiFi module
• Storage:
  • 4x SATA3 6Gbps ports supports RAID 0/1/5/10. 2x M.2 slots supports raid 0/1. M2_1 slot supports PCIe 4.0 x4 and 2242/ 2260/ 2280/ 22110 storage devices, M2_2 slot supports PCIe 4.0 x4, SATA 6Gb/s and 2242/ 2260/ 2280 storage devices. Supports Intel^® Smart Response Technology for Intel Core™ processors. Intel Optane Memory Ready
• NIC: 1x Realtek^® RTL8125BG 2.5Gbps LAN controller
• Audio: 7.1 Channel HD Audio. Supports S/PDIF output

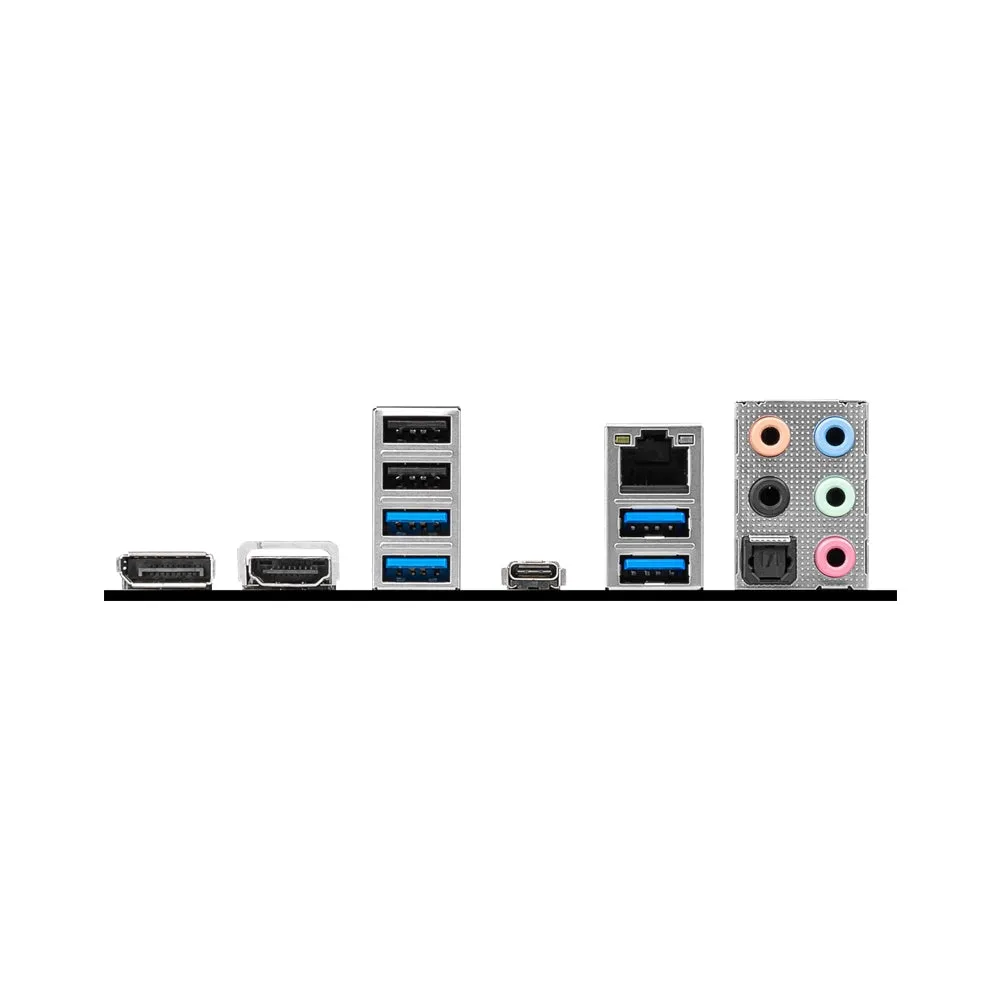

• I/O:
  • 1x HDMI
  • 1x DisplayPort
  • 2( 4int)x USB2.0
  • 4( 4int)x USB 3.2 Gen1 type A
  • 1x USB3.2 Gen2x2 Type-C
  • 1x RJ45 (LAN)
  • 5 Audio jacks
  • 1x front panel audio connector
  • 1x Optical S/PDIF Out
• Special:
  • Extended Heatsink Design
  • 8 4 Pin Power Supply
  • 2.5G Network Solution
  • Core boost
  • Memory Boost
  • EZ Debug LED
  • Frozr AI Cooling
  • Lightning Gen5
  • Lightning USB 20G
• Warranty: 3 Years
