Product Details
＋

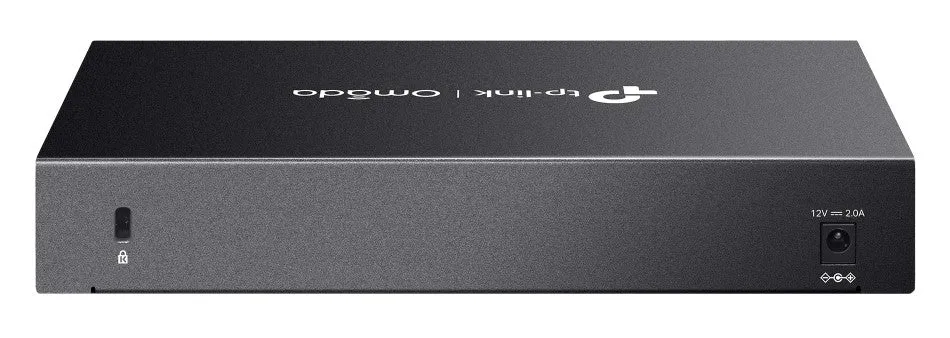

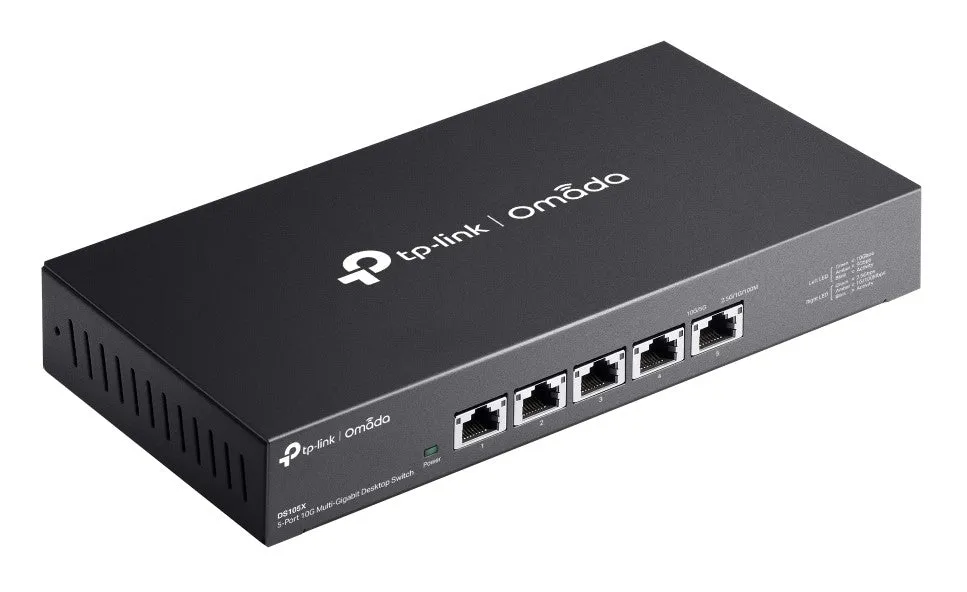

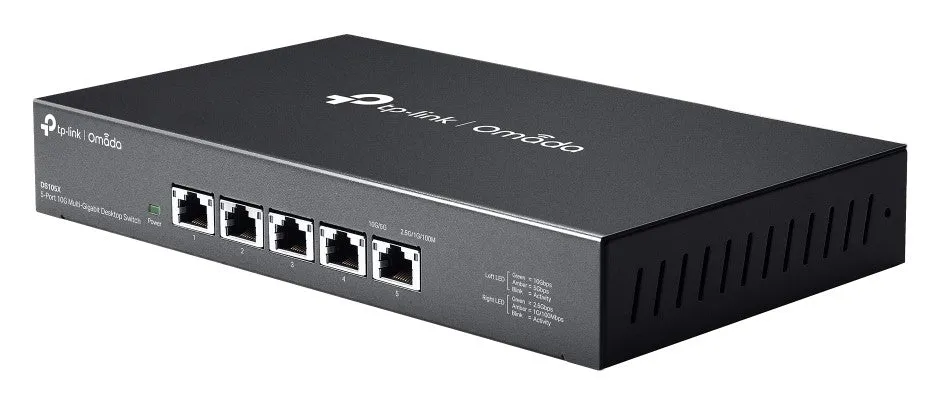

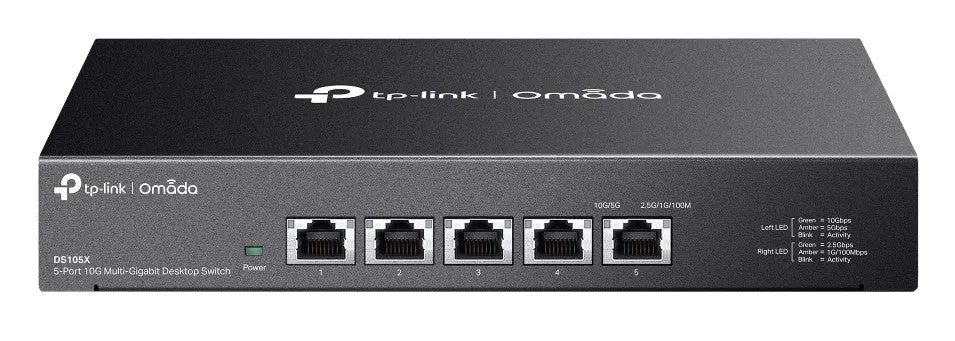

DS105X Omada 5-Port 10G Unmanaged Desktop Switch
- Five 10 Gbps ports . Five 10 Gigabit ports unlock 10G/Multi-Gig bandwidth and maximize device performance, providing switching capacity up to 100 Gbps.
- Lightning fast connection . Provides lightning-fast connections to 10G NAS, servers, 10G PCIe adapters/NICs, gaming PCs, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Suitable for various scenarios . Designed for lightning-fast connections at LAN parties, home entertainment, small home offices, and workstations.
- Best 5 speed cable . 5-speed (100Mbps/1G/2.5G/5G/10G) connection auto-negotiation provides the best performance.
- Runs silently . The revolutionary fanless design ensures unprecedented quiet operation, making it perfect for any home or business.
- Durable metal housing . Durable metal shell, desktop/wall-mounted, professional heat dissipation design, suitable for different environments.
- Plug and play . No configuration or centralized management is required.
| HARDWARE SPECIFICATIONS | |
|---|---|
| standards and protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Connection interface |
• 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports • Auto-Negotiation • Auto-MDI/MDIX |
| Number of fans | Fanless |
| External power supply | External Power Adapter (Output: 12 VDC / 2.0 A) |
| LED indicator light |
• System Power: 1 • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port |
| Dimensions (length x width x height) | 8.9×5.2×1.4 in (226×131×35 mm) |
| Maximum power consumption | 21.4W |
| PRODUCT PERFORMANCE | |
|---|---|
| Backplane bandwidth | 100 Gbps |
| Packet forwarding rate | 74.4 Mpps |
| MAC address table | 32K |
| packet buffer memory | 2MB |
| jumbo frame | 10 KB |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Advanced functions |
• 802.3X Flow Control • 802.1p/DSCP QoS |
| Transmission mode | Store and Forward |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | CE, FCC,RoHS |
| Package Contents |
• DS105X • Power Cord • Installation Guide • Rubber Feet |
| environment |
• Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
